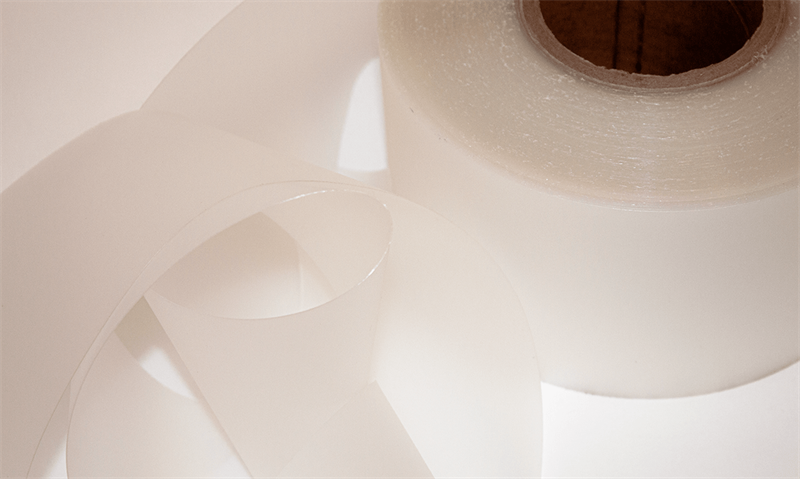

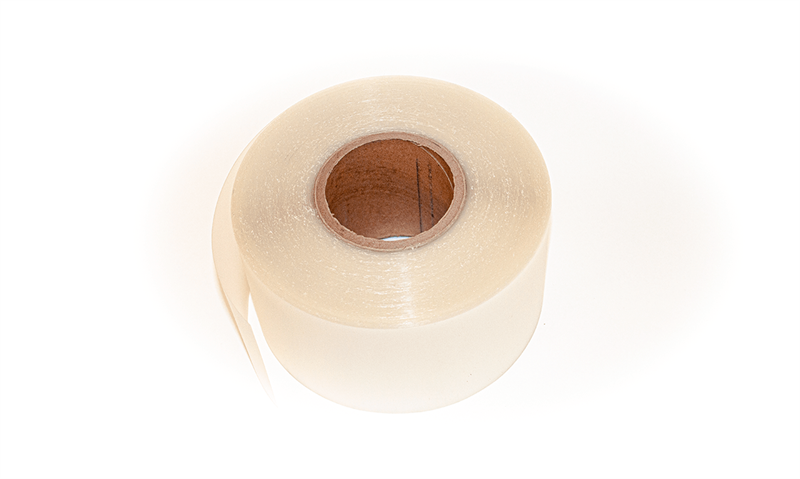

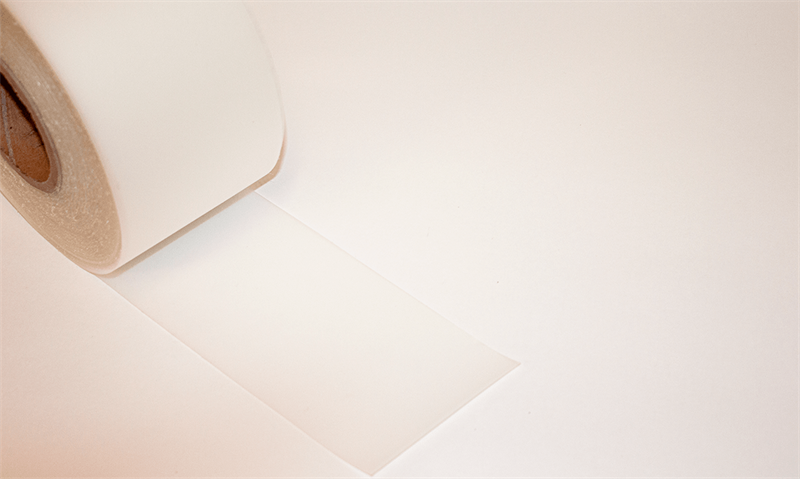

bending foil mm bending foil

AAG offers bending foil , durable bending foil for industrial use. bending foil for bending metal, aluminum, and stainless steel. Dimensions: 100×2 mm in 15-meter rolls.

Avoid leaving marks on metal

With AAG bending foil , you bending foil bend metal workpieces without scratching them, while also protecting your tools. The bending foil is designed to be placed between the bending tool itself and the metal workpiece to be bent, ensuring a bend without marks or scratches. AAG offers bending foil various thicknesses, widths, and lengths to suit your specific needs and requirements.

Benefits of using bending foil

There are many benefits to using bending foil, including:

• Protection of delicate surfaces
• Suitable for steel, stainless steel, and aluminum
• Prevents scratches and marks
• Long service life and high wear resistance
• High tensile strength
• Can withstand large temperature fluctuations
• Resistant to oil, grease, and acids
• Protects tools and machinery

How to use bending foil

When bending metal parts, marks, indentations, or scratches can easily form on the surface of the material, which must then be removed through further processing. With AAG bending foil , you bending foil easily prevent or minimize this. Depending on the workpiece to be bent and your tooling, AAG offers various types bending foil, each of which provides maximum protection for the bent section. As a general rule, we recommend the following:

• 0.4 mmbending foil material thicknesses up to 1.0 mm
• 0.5 mmbending foil material thicknesses ranging from 1.0 mm to 2.5/3.0 mm
• From 0.8 mm filmbending foil material thicknesses ranging from 3.0 mm to 6.0 mm

Contact our sales department by email at [email protected] or by phone at +45 98 15 80 22 for a great offer on AAG foam plastic or for further information.
