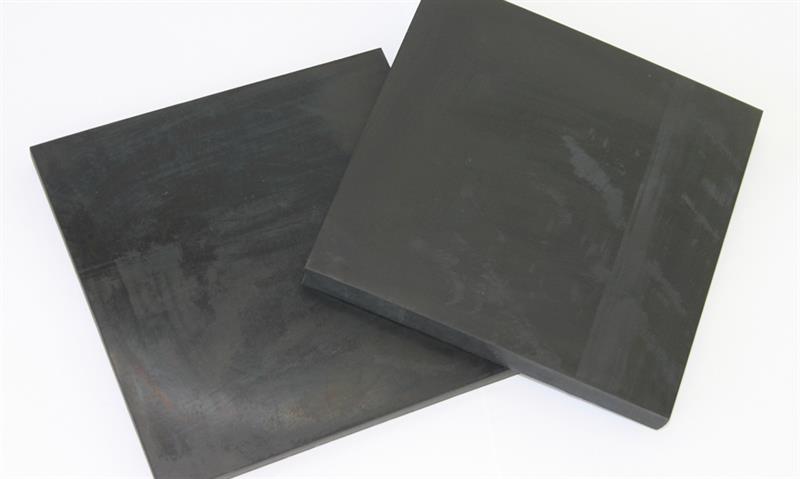

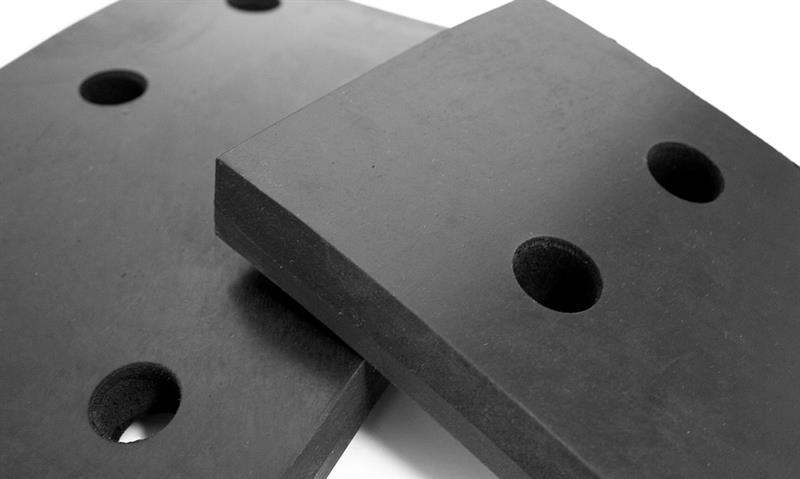

AAG Unreinforced elastomeric support bearing

AAG unreinforced elastomeric bearings primarily bearings to support beams, girders, and similar structures subjected to static loads. They ensure controlled load distribution and prevent horizontal stresses or twisting in the supports. They prevent unnecessarily large load eccentricities and edge compressions. At the same time, they compensate for unevenness and deviations in parallelism on the surfaces of reinforced bearings.

Among other products, we offer our N1859 neoprene sheeting a tensile strength of 6 MPa in accordance with ISO 7743-A. The rubber sheet can be die-cut and cut to any size or shape.

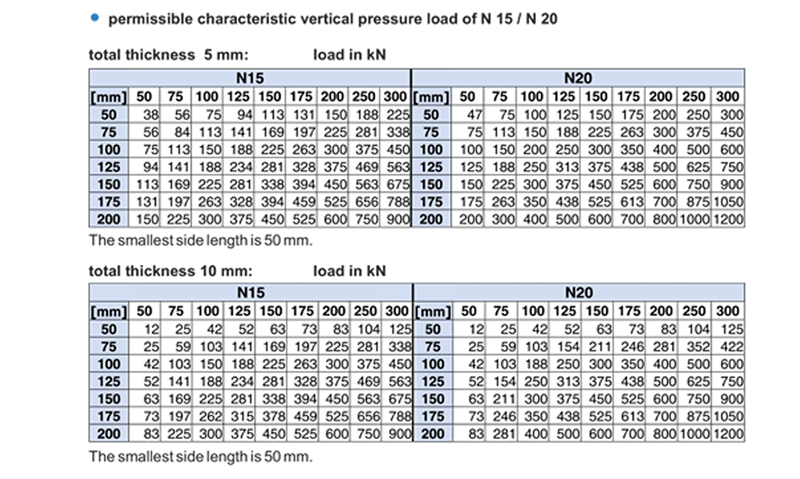

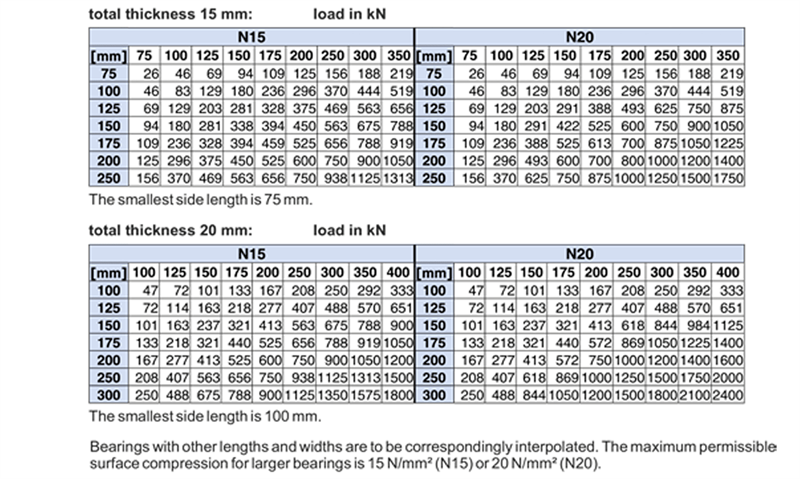

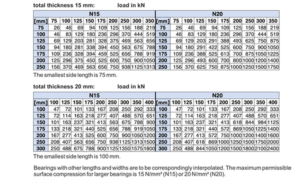

In addition, we offer AAG unreinforcedbearings and N20, which are manufactured in thicknesses of 5, 10, 15, and 20 mm. The smallest side should be at least five times the thickness of the bearing. The bearing must be placed within the static reinforcement of the adjacent concrete components.

Contact our sales department by email at [email protected] or by phone at +45 98 15 80 22 for a great offer or further information.
